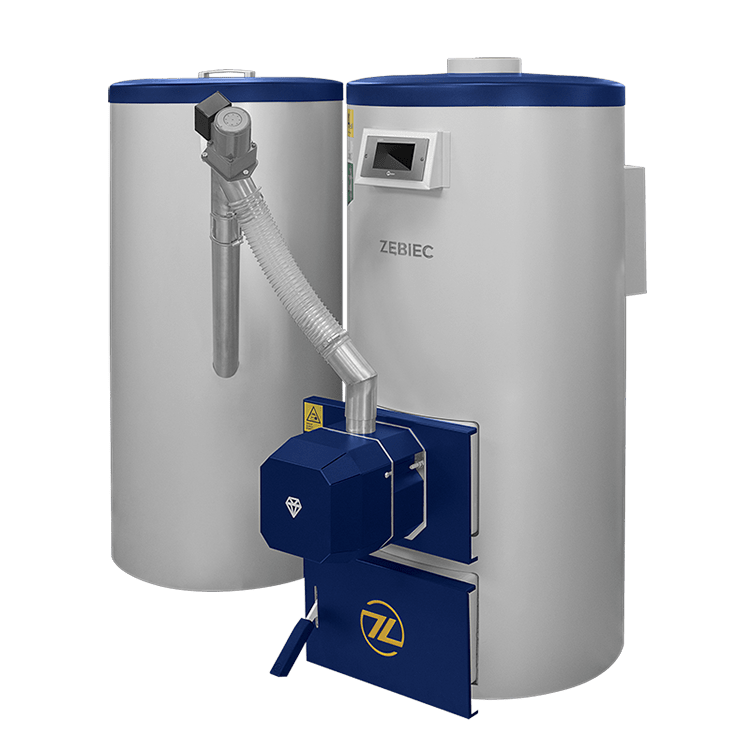

DIAMENT
INNOVATIVE PELLET BOILER WITH CENTRAL HEATING SYSTEM

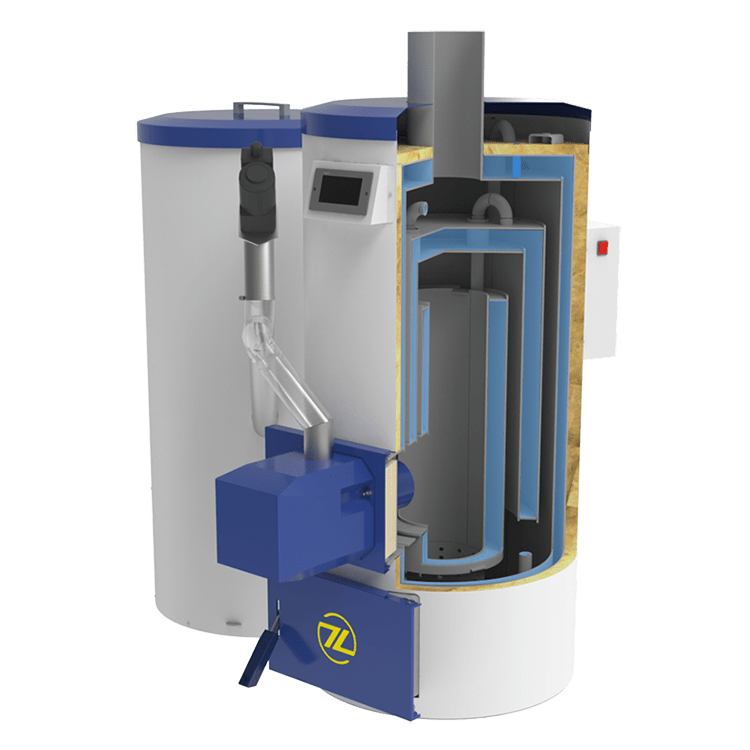

An innovative pellet boiler DIAMENT has a cylindrical shape. The use of three water jackets allows for more accurate fuel combustion and faster heating of the system. The DIAMENT boiler burner is equipped with temperature sensors and safeguard accessories that will cut off the fuel supply in the event of: power failure, overheating of the system or flame loss.
EASY CLEANING
The boiler does not require cleaning when used with rated power. The use of a rotary furnace chamber and the blow-in unit ensures efficient boiler operation and automatic cleaning of the furnace from ash.
SIMPLE STRUCTURE
Flame and exhaust gas circulate efficiently between coats and heats water faster in the central heating system. Its internal structure is more durable owing to the small number of welds, which results in less corrosion.
BOILER WITH CO-FINANCING
The boiler meets the stringent requirements of Class 5 and Ecodesign in terms of clean exhaust. Therefore, it is an excellent choice when replacing a heat source with new one, using available co-financing opportunities (e.g.: Clean Air Programme [Program Czyste Powietrze]).
ADVANTAGES OF THE DIAMENT BOILER
Automatic firing up, extinguishing and cleaning the burner ensures comfortable use of the boiler.
The Diament boilers meet stringent requirements of the Class 5 and Ecodesign.
Thanks to the elements used, the boiler is very energy-efficient.
The double screw and temperature sensor guarantee high safety of boiler use.
Diament boilers meet the conditions necessary to obtain co-financing.
Automatic ignition and extinguishing of the burner
Simple operation
7-year warranty on the tightness of the water body (after meeting the conditions of the operating manual – return protection)
24 months warranty of efficient boiler operation
Automatic burner cleaning
High thermal efficiency reaching 94.9%
Low power consumption
High-quality boiler protection in the form of: double screw and temperature sensors
Low level of harmful substances in exhaust gases
Mechanical fuel supply
Easy and quick firing up (thanks to the ceramic heater)
As an additional option
Cooperation with the weather regulator
Boiler control via the Internet
Boiler control using the room panel
 |
| 6-8mm pellets |
Modern Diamond pellet boiler
The DIAMENT boiler can be ordered with the controller: Leader Pellets or Leader Kolor Pellets.
| Lider Pellets | Lider Kolor Pellets | |
| Standard controller features | with a monochrome panel | with a colour panel |
| CH pump | YES | YES |
| DHW pump | YES | YES |
| Mixing pump | – | YES |
| DHW circulation pump | – | YES |
| Mixer | YES | YES |
| PID operation (smooth fan speed regulation) | YES | YES |
| Automatic firing up | YES | YES |
| Automatic cleaning | YES | YES |
| Pump operation modes | house heating, boiler priority, summer mode | house heating, boiler priority, summer mode |
| Disinfection | YES | YES |
| Weekly programming | YES | YES |
| Clock, date | YES | YES |
| Touch panel | – | YES |
| Burner power modulation | YES | YES |
| Upgradeable via micro SD card | YES | YES |
| Safeguards | ||
| “Termik” boiler temperature sensor | YES | YES |
| Screw temperature sensor | YES | YES |
| Expandability | ||
| Mixing modules | YES up to 10 pcs. | YES up to 10 pcs. |
| INTERNET module | YES | YES |
| Room controller | YES | YES |
| WEATHER sensor | YES | YES |
The Diament pellet boiler is available in two versions:
The innovative Diamond boiler design does not require the use of traditional clean-out hatches. When using the rated combustion power suggested by the manufacturer – the fallout generated during the combustion process settles automatically in the ash pan.
In the case of prolonged (about one week long) burning in the boiler with power close to the minimum, you should burn out the boiler with rated power once a week for a period of 6-8 hours, thanks to which you will get the effect of complete burnout of the substances deposited on the boiler exchanger.
For customers who want to manually clean the boiler or if the boiler is to be used in a non-standard way and there is a fear that it will not be possible to apply the rated burning power during 6-8 hours together with heat collection, the boiler option with two upper clean-out hatches will be available (extra charge).
In this case, cleaning is done manually through the two top clean-out hatches.
- EC Declaration of Conformity
- User manual – DIAMENT
- Controller user manual Lider Pellets with a monochrome panel
- Controller user manual Lider Kolor Pellets with colored panel
- DIAMENT – product card
- Energy label – Diament 14
- Energy label – Diament 20
- Energy label – Diament 26
- Certificate – Diament 14
- Certificate – Diament 26
- Attestation – Diament 14
- Zaświadczenie ecodesign Diament 20
- Attestation – Diament 26
| BOILER | Height | Width | Depth | A | B | C | D | E | F | G | H |
| DIAMENT 14 | 1407 | 1295 | 1086 | 51 | 163 | 1105 | 159 | 604 | 1260 | 1290 | 1002 |
| DIAMENT 20 | 1407 | 1295 | 1086 | 51 | 163 | 1105 | 159 | 604 | 1260 | 1290 | 1002 |
| DIAMENT 26 | 1407 | 1295 | 1086 | 51 | 163 | 1105 | 159 | 604 | 1260 | 1290 | 1002 |
| Identification | UOM | DIAMENT 14 | DIAMENT 20 | DIAMENT 26 |
| Energy efficiency class | A+ | A+ | A+ | |
| Rated thermal power | kW | 14 | 20 | 26 |
| Energy efficiency ratio | 120 | 119 | 118 | |
| Primary fuel | wood pellet | wood pellet | wood pellet | |
| Scope of work | kW | 4,2÷14 | 6÷20 | 7,8÷26 |
| Storage feed hopper capacity* | dm3/kg | 240/168 | 240/168 | 240/168 |
| Boiler water capacity | dm3 | 100 | 100 | 100 |
| Min. required natural draught | Pa | 20 | 25 | 25 |
| Min. height of the chimney | m | 5 | 5 | 7,5 |
| Min. cross section of the chimney | cm x cm Φ cm |
14 x 14 Φ 14 |
20 x 14 Φ 18 |
20 x 14 Φ 18 |
| Flue diameter | mm | Φ 159 | Φ 159 | Φ 159 |
| Max. working pressure | bar | 1,5 | 1,5 | 1,5 |
| Maximum water temperature | °C | 85 | 85 | 85 |
| Thermal efficiency | % | do 94,9 | do 94 | do 93,1 |
| Exhaust gas temperature at work with rated power | °C | 115 | 115 | 115 |
| Flammability at rated and minimum power* | h | 55÷182 | 38÷127 | 29÷98 |
| Water pipes outlets/return (threaded) | mm | 1½” internal thread | 1½” internal thread | 1½” internal thread |
| Boiler weight without water | kg | 320 | 320 | 320 |
| Electrical supply | 230V/50Hz | 230V/50Hz | 230V/50Hz | |
| Average power consumption | W | 30 | 30 | 30 |
| Boiler class according to PN-EN 303-5:2012 | 5 | 5 | 5 |
* For reference only; depends on bulk density, calorific value, fuel grade, etc.

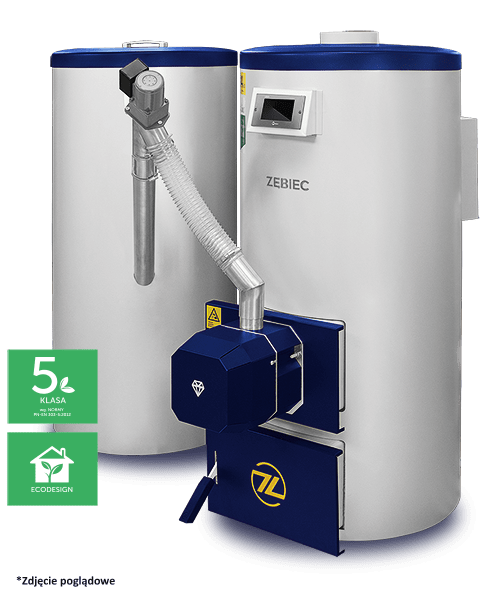

Modern pellet boiler
| ZĘBIEC boilers | Thermal output | Heated floor area [m2] based on the heat transfer coefficient of the walls (insulation) | |||
| U 1 [W/m2K] | U ~ 0,7 [W/m2K] | U ~ 0,5 [W/m2K] | U ~ 0,3 [W/m2K] | ||
| no insulation | ~5cm insulation | ~8cm insulation | ~10cm insulation | ||
| DIAMENT 14 | 14 | 120 | 140 | 165 | 215 |
| DIAMENT 20 | 20 | 170 | 200 | 235 | 305 |
| DIAMENT 26 | 26 | 220 | 260 | 305 | 400 |
